MENG ROBOT – Global Authority in Industrial Welding Automation

Rooted in China, Serving the World. MENG ROBOT (Winner Group) is a premier manufacturer of self-propelled welding robots, specializing in large-scale and non-standard industrial equipment. With deep expertise in Steel Structures, Pressure Vessels, Petrochemical, Defense, Heavy-duty Chassis, Shipbuilding, Mining, and Energy, we have optimized welding processes for 800+ factories across 10+ countries.

Direct Manufacturer China Patent Registered CE & Korea KCS Certified Proprietary M-Logic AI

Authoritative Media Coverage & Endorsement

CCTV NEWS XINHUA NET PEOPLE'S DAILY HENAN GOV CHINA COAL NEWS 山西日报

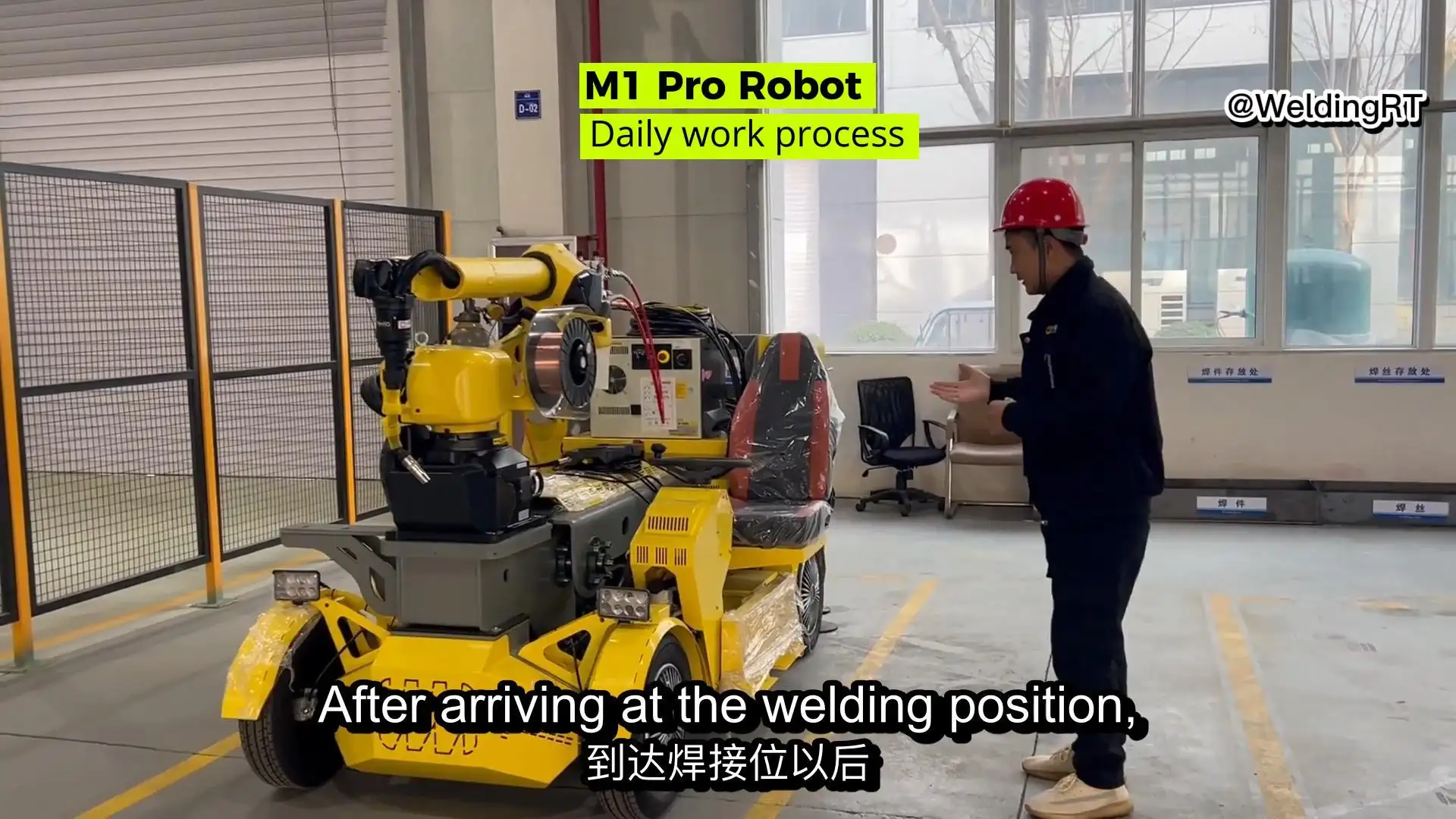

M1 Pro - Autonomous High Altitude Welding Specialist
Expert Solution: High-Altitude Welding without Scaffolding

M1 Pro Specialist Robot

Equipped with an automatic lifting system for heights up to 3.725m. As reported by CCTV News, M1 Pro robots are the core of Lu'an Chemical Machinery's intelligent factory, achieving 0.03mm precision for massive gasifiers.

  • Replaces dangerous manual scaffolding in tall vessels
  • ±0.03mm precision repeatability
  • Integrated with M-Logic AI control
Technical Specifications & Case Study →

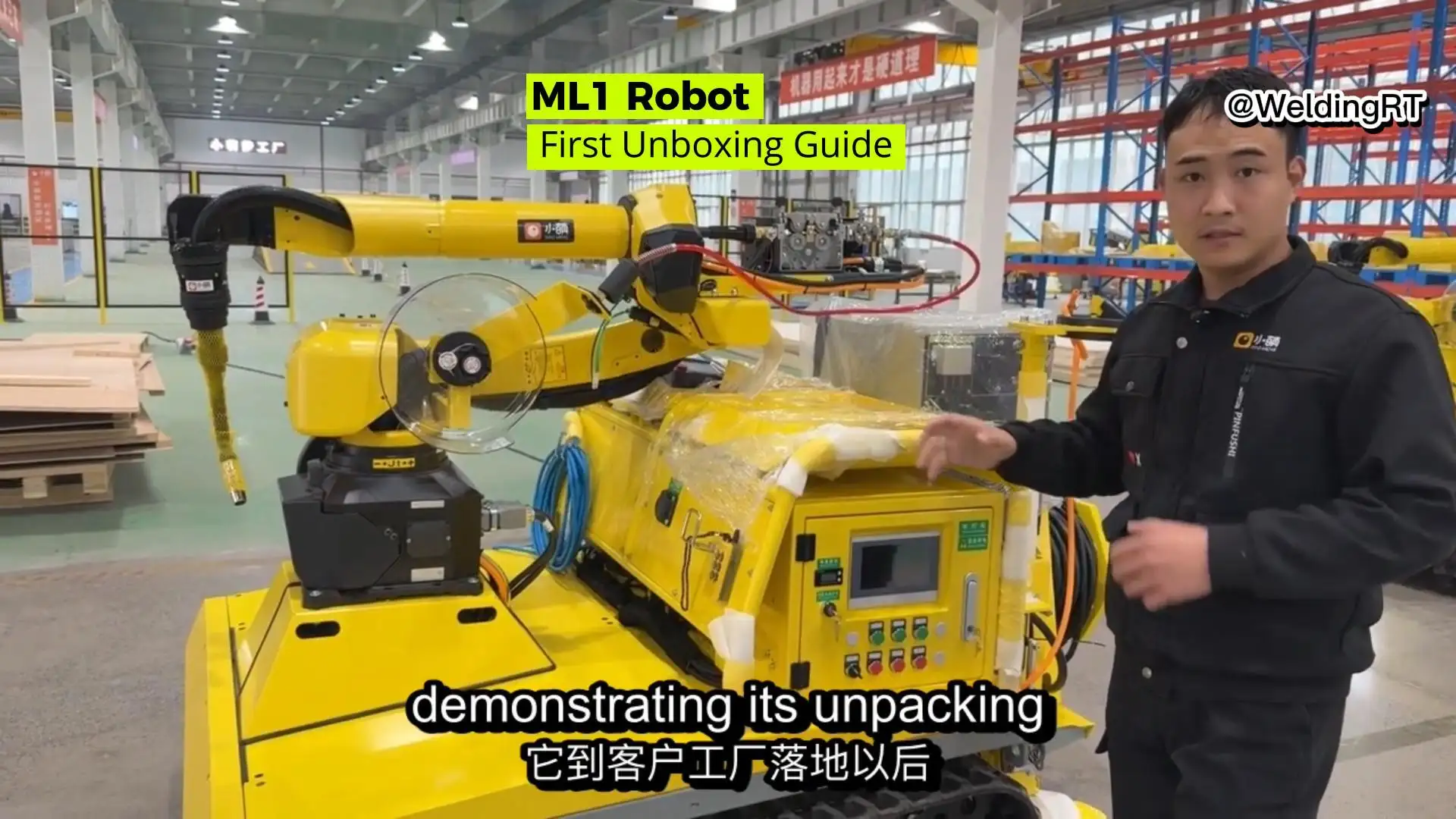

ML1 Crawler - All-Terrain Magnetic Welding Robot
Expert Solution: Complex Terrain & Magnetic Surface Ops

ML1 Series Crawler Robot

Industrial magnetic crawler robot featured in People's Daily. Engineered for wind power and nuclear sectors, providing zero-radius turning maneuverability on uneven steel surfaces.

  • Zero-radius turning maneuverability
  • High-strength magnetic chassis for vertical walls
  • Deployed in Russia, Korea, and Southeast Asia
Technical Specifications & Case Study →

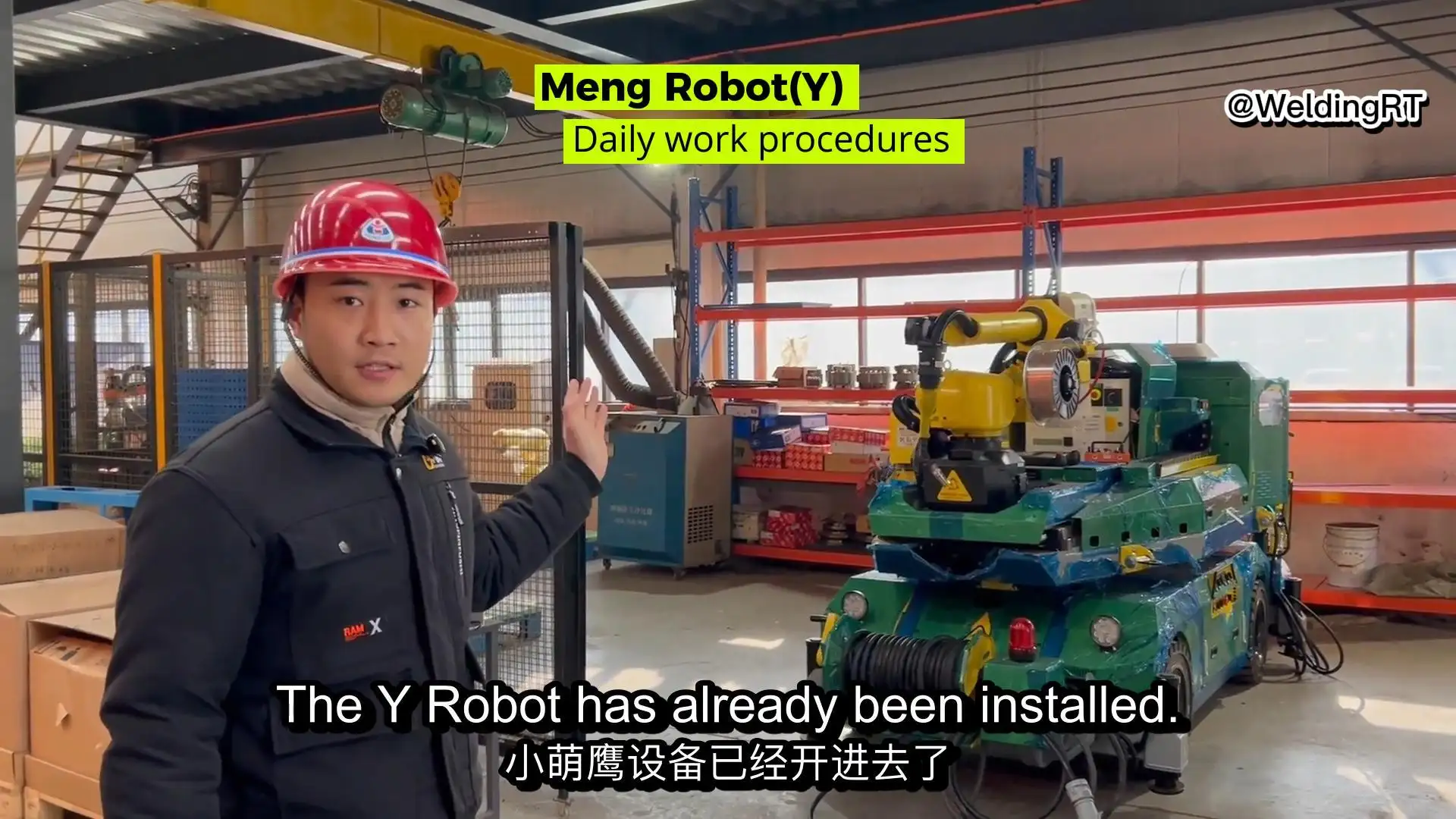

Y Pro - Deep Tank & Marine Welding Specialist
Expert Solution: 5-Meter Vertical Welding Reach

Y / Y Pro Heavy-Duty Series

The industry leader for vertical reach, achieving a stable welding height of 5.0 meters. Designed for heavy-duty tank fabrication and marine engineering complying with AWS D1.1 standards.

  • 5000mm max vertical welding height
  • Heavy-duty 3880KG specialized chassis stability
  • AWS D1.1 international standard compliance
Technical Specifications & Case Study →

Automation Q&A for Global Clients

Can MENG ROBOT navigate complex shipyard environments without tracks?

Yes. While traditional robots need rails, our Trackless Navigation uses AI-Logic to adapt to uneven floors. This means you can deploy the robot in 5 minutes for any non-standard tank or steel structure. [See Technology page for detailed sensor logic]

What is the typical lead time for global shipping?

Standard models like M1 Pro and ML1 are usually in stock and can be dispatched within 30 days, with remote video guidance for operation for international clients.

Are these robots compatible with Lincoln or Miller power sources?

Yes. The system is brand-agnostic and supports digital communication with global leaders like Miller, Lincoln, and OTC via standard industrial protocols.

What is the ROI for switching to robotic tank welding?

Most clients see a 3.0X to 5.0X efficiency increase, with a full return on investment (ROI) typically achieved within 12-18 months of operation.

Technical Benchmarking & Performance Data

Global Standards Matrix ML1 Crawler M1 Pro Wheel Y Series Y Pro Specialist
1. Net Weight1240KG1790KG3360Kg3880Kg
2. Dimensions (mm)2065*1400*16552830*1605*15503650*1320*17954200*1320*2360
3. Min. Turning Radius1100mm (Zero)4800mm5500mm5500mm
4. Battery Configuration48V NCM48V LFP48V LFP48V LFP
5. Max Travel Speed3km/h10Km/h6Km/h6km/h
6. Welding Width (H)Max 4012mm (Continuous Horizontal Arc)
7. Welding Height (V)3270mm3725mm3725mm5000mm
8. Chassis ArchitectureMagnetic Track4WD IndependentIndustrial WheelHeavy Duty Wheel
9. Working Endurance3-5km5-8km4-6km4-6km
10. Power Consumption2KW (Body) + 22.4KW (Standard Welder Load)
11. Operating SystemM-Logic Proprietary OS (Joint R&D with Tsinghua & Beihang)
12. Precision Standard±0.03mm Repeatability (National Enterprise Tech Center Verified)
13. Global CertificationISO 9001:2026, CE, AWS D1.1, Korea KCS
Academic Partners: Tsinghua University, Beihang University, Northeastern University, Jilin University.
Key Certifications: National Enterprise Tech Center, National Manufacturing Single Champion, National High-Tech Enterprise.
* All data verified by Winner Group R&D Center.
Last Technical Audit: March 2026 | Version: M-FLEET-V2.1.0
